MAXIMIZE YOUR PRODUCTIVITY
MULTIAX PRODUCTIVE SOLUTIONS FOR
COMMERCIAL
AND ARCHITECTURAL DOOR MACHINING

Multiax CNC machining centers are designed to perform
all the activities necessary for the production of interior  commercial and architectural doors, maximizing productivity by working from 20 to 240 complete doors in an 8-hour shift.
Configurations can be manual, semi-automatic or fully automatic, depending on volume requirements.

FEATURES INCLUDE:

  • Rigid Construction
  • High Accuracy
  • Unprecedented “Up-Time”
  • High Speed Cutting
  • Automatic or Manual Loading & Unloading
  • Excellent Service After the Sale
  • Affordable Quality

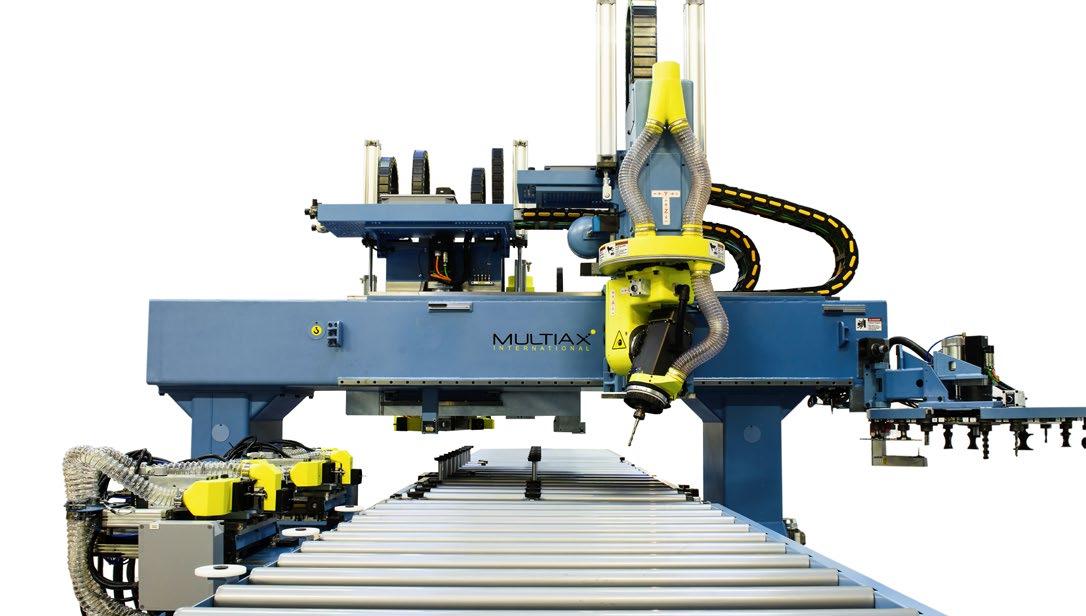

Banco Passante

Fully automatic feed-through table
complete with Auto Load and Unload

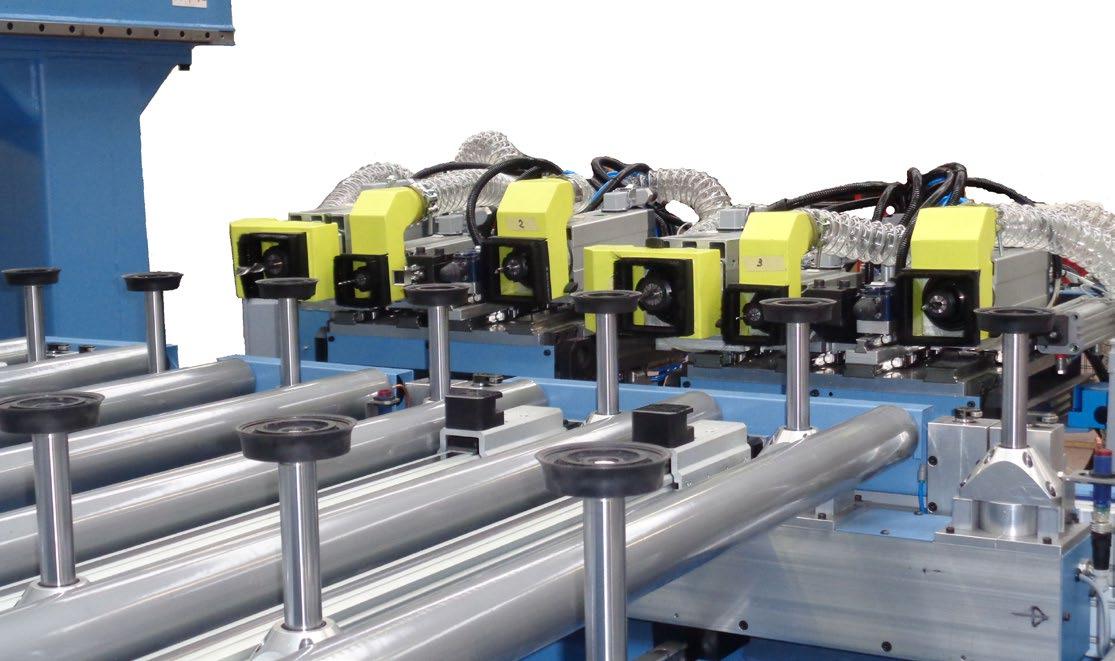

Due unità di fresatura

Two independent 3 axis hinge router units
each with RH and LH spindles starting from -3 up to +3 degree positioning, drill and square chisel

Lavorazioni simultanee

Simultaneous door
top and bottom CNC Machining Center

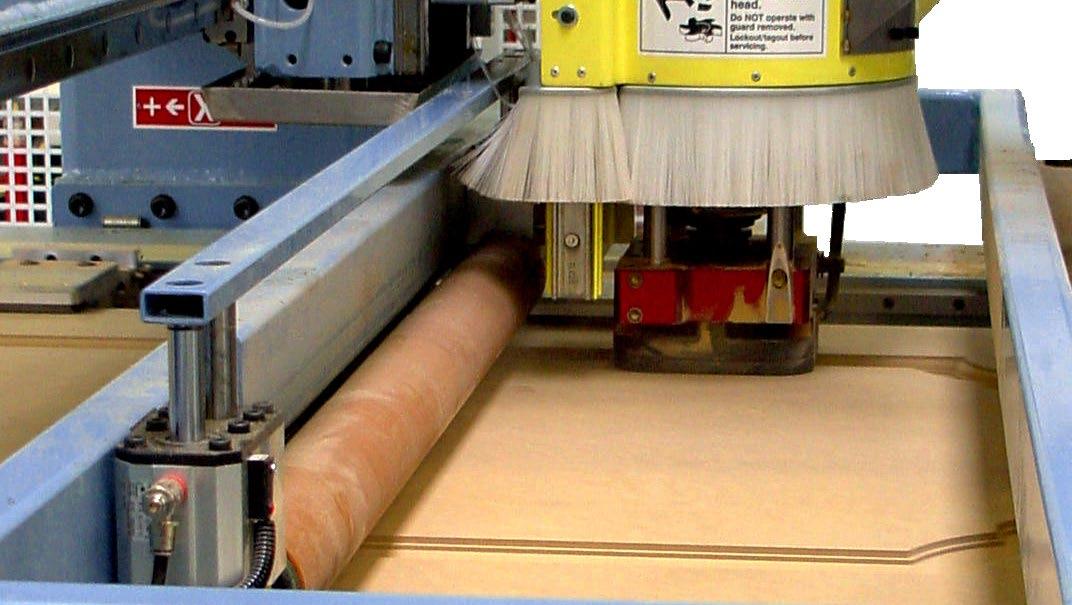

Dispositivo flottante

Digital Floating System
(optional)




MULTIAX DOOR RANGE
OF INNOVATIVE SOLUTIONS,
FOR ALL PRODUCTION PHASES

  • Software Automated software from order entry, to creating Cad drawing, to CNC code for the machine.
  • Size doors up to 4’ x 10’ or mm. 1.200 X 3.000 larger door on request.
  • Machine doors that are already sized.
  • Perform 3-degree bevelling.

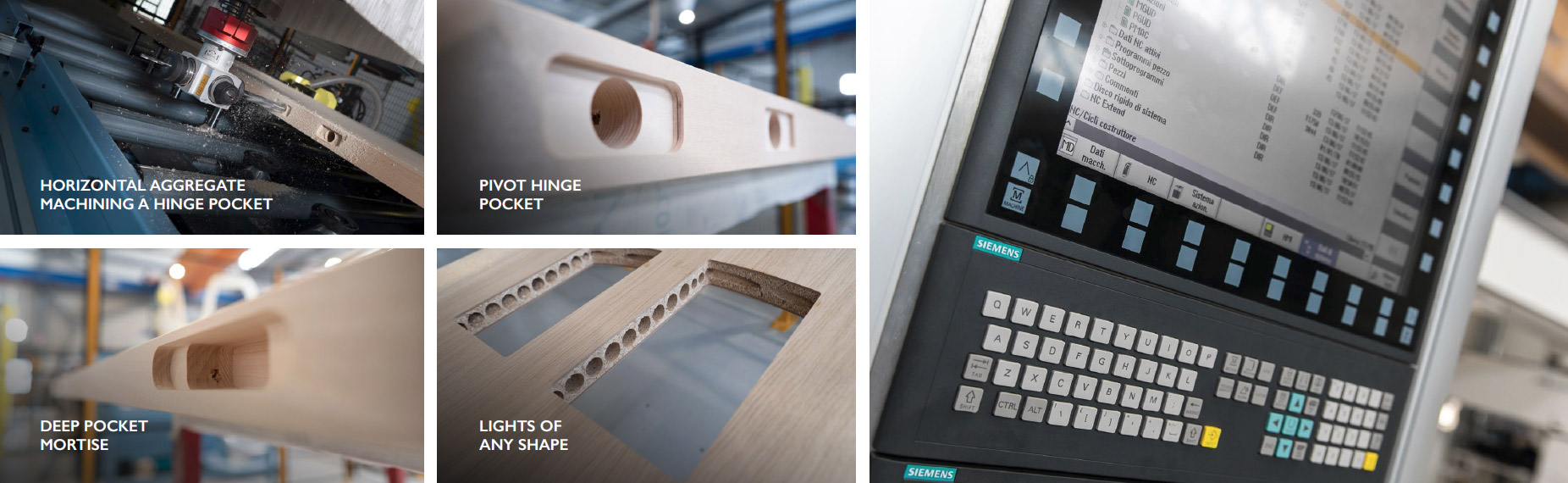

  • Perform most all types of hinge machining.
  • Perform most all sweep and closer machining.
  • Perform most all cylinder lock, mortise lock, dead bolt, etc, machining.
  • Optional underneath routing is available. (Eliminates door flip)
  • Machining of door lights and peep holes.
  • Misc. face and edge machining.
  • Cutting speeds up to 2000” or 50 meters per minute
  • Fanuc or OSAI CNC Controllers
  • Optional complete material handling is available.
  • Complete surface machining of MDF doors.
  • All machines are tailored to fit your needs.


phone

30>50

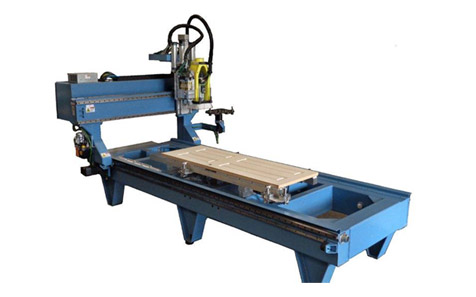

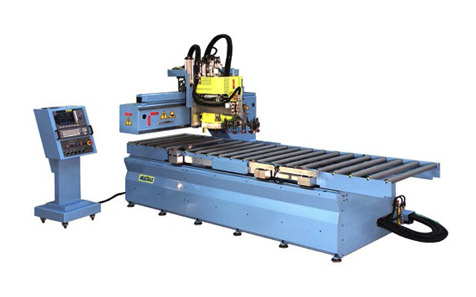

4 Axes Machine
with Manual Setup and Manual Loading can produce 30 to 50 doors per shift

phone

40>60

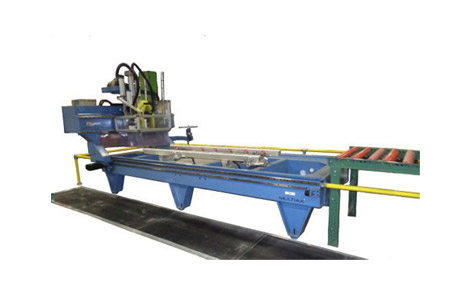

4 Axes Machine
with Automatic Setup and Rollin Loading can produce 40 to 60 doors per shift

phone

60>100

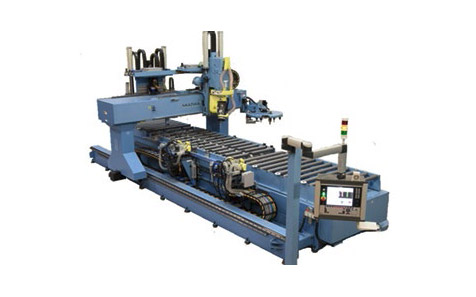

5 Axes Machine
with Automatic setup and Automatic Loading can produce 60 to 100 doors per shift

phone

150>200

11 Axes Machine
with Automatic setup and Automatic Loading. Productivity from 150 to 200 doors per shift




phone

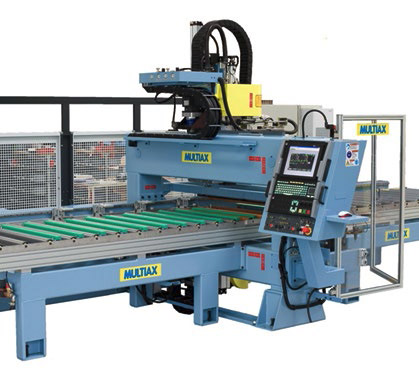

Series D

The Multiax D Machine is a Rugged, Compact, Fixed  Bridge Structure, with 3, 4 or 5 Axes Movements, Simultaneous Top and Bottom CNC Machining Center Engineered to perform machining of:
  • Face Profiling
  • Door Core Machining
  • Light Cut-outs
  • Door sizing
  • Hardware Preps
  • Complete Door Machining
Leran more

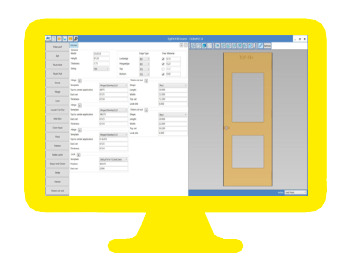

COMPLETE DOOR
MACHINING SOFTWARE
with Easy-to-Use order entry screen

  • Produces a complete 3D drawing of every door entered.
  • Add all preps required.
  • Complete with integrated machining simulation packageintegrato.
Software and 3D simulations Register to watch the full video and see the other Multiax solutions
Ask for more customization.
Each Multiax CNC machining center is highly customizable to meet any requests. Contact us for tailor-made
solutions or more information
